Features
l Provides protection for 4 series LiFePO4 battery pack
l Provides protections in charging and discharging
l Processes the balance between cells smartly, the current of it can be set freely by external components.
l Deals with over-current and short-circuit protection with circuit itself
l Protect an electrical circuit from damage caused by over current/ over load or short circuit
l Low temperature heating function
l Support RS485 protocol
l Support bluetooth protocol

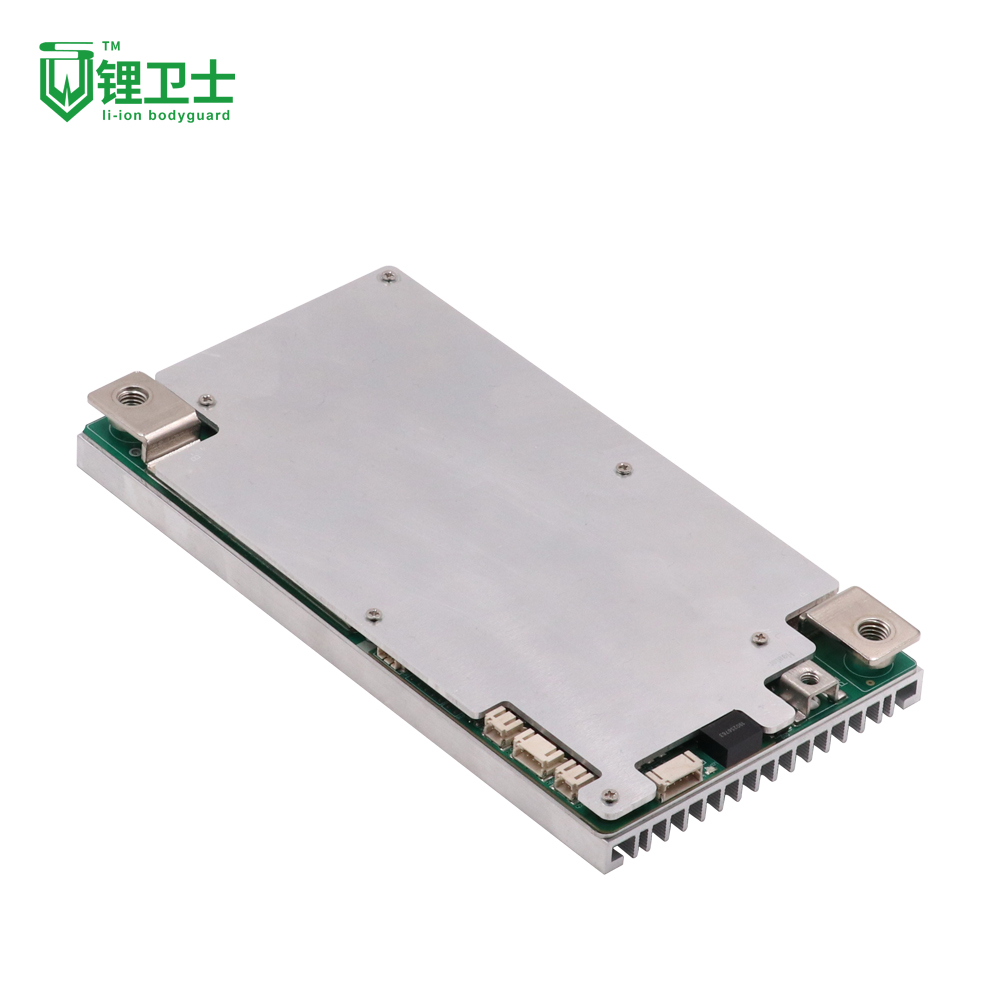

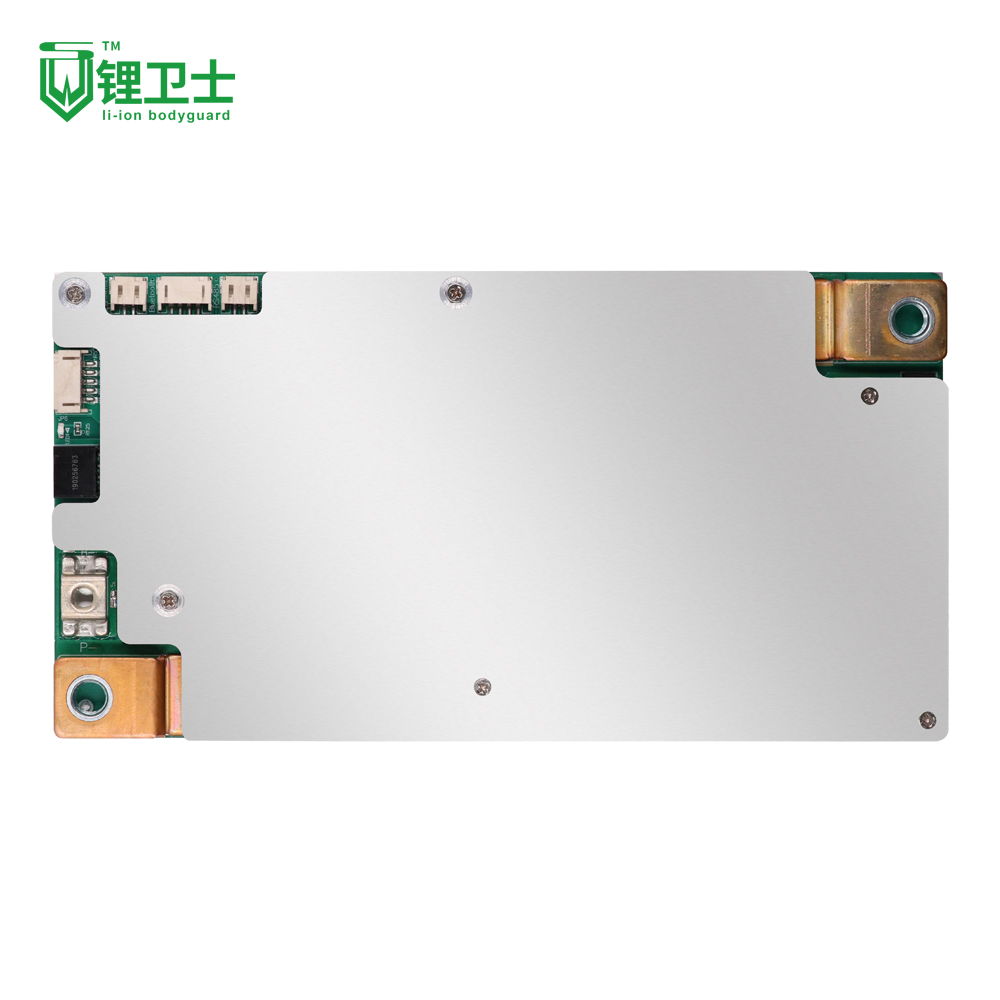

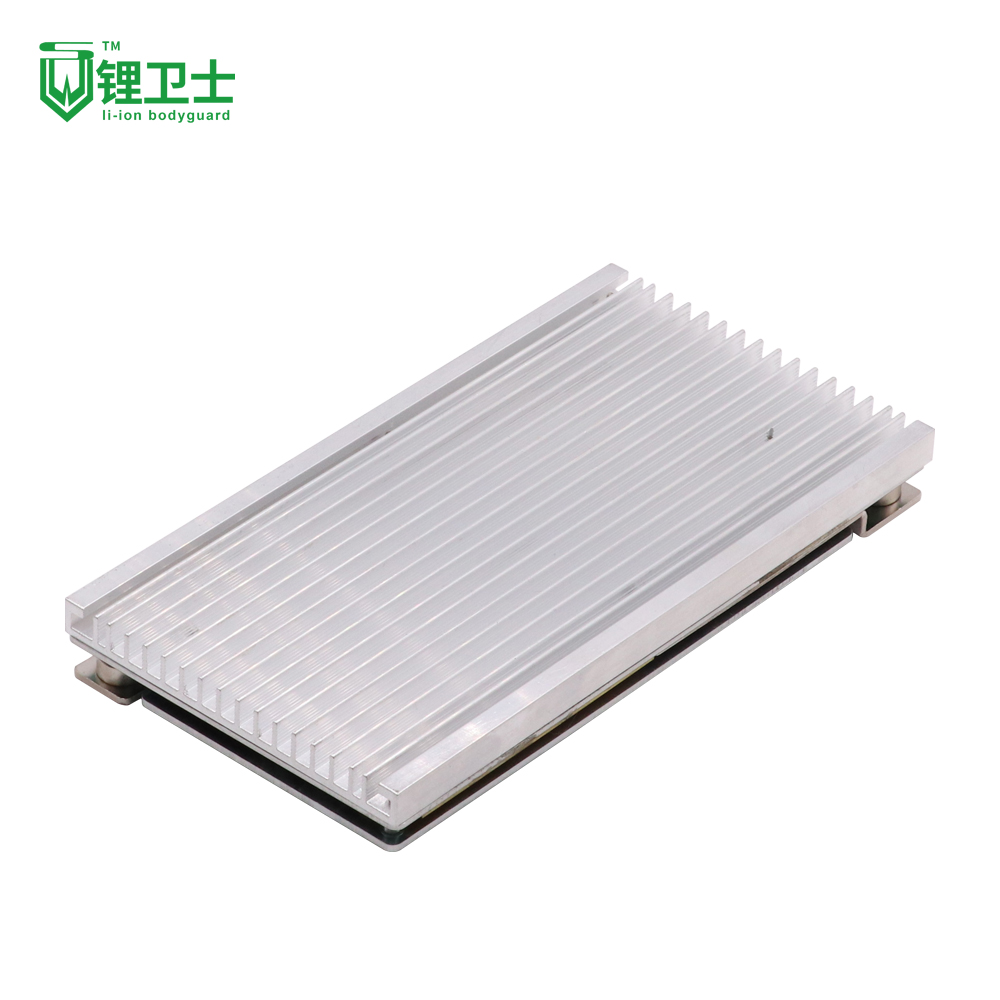

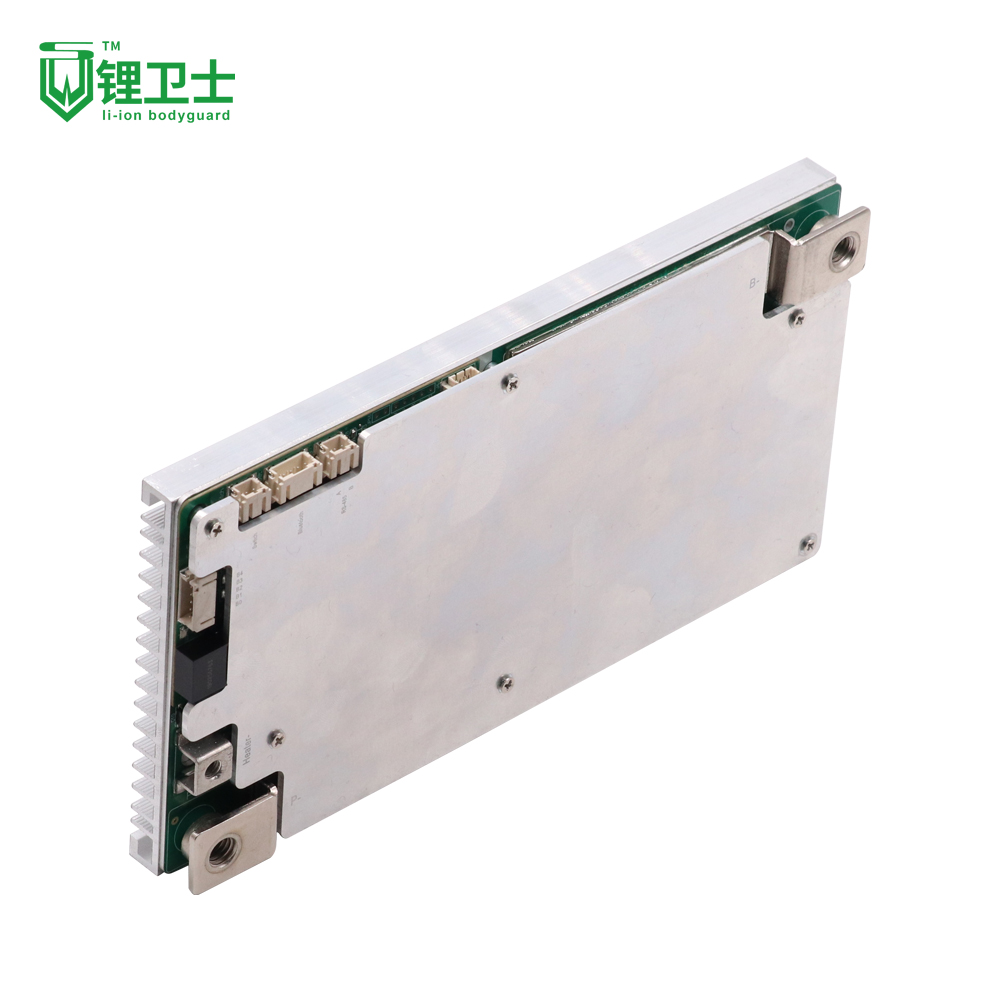

Model: LWS-4S200A-898

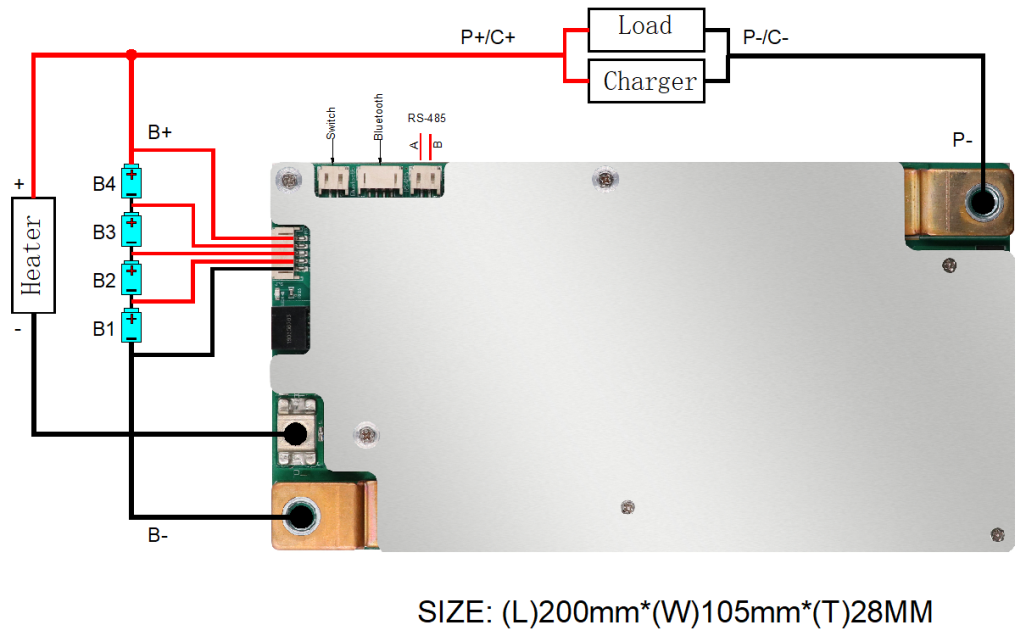

Dimensions(mm):200*105*28
Cells Series: Strings 4S Battery Type : NMC /LFP
Input charging Voltage: 14.4V
Continuous Current: 100A 150A 200A
Function: Heating; RS485;RS232; CAN; Bluetooth; ON/OFF Switch
